Fairdale Weekender Archer City Bike - 2023

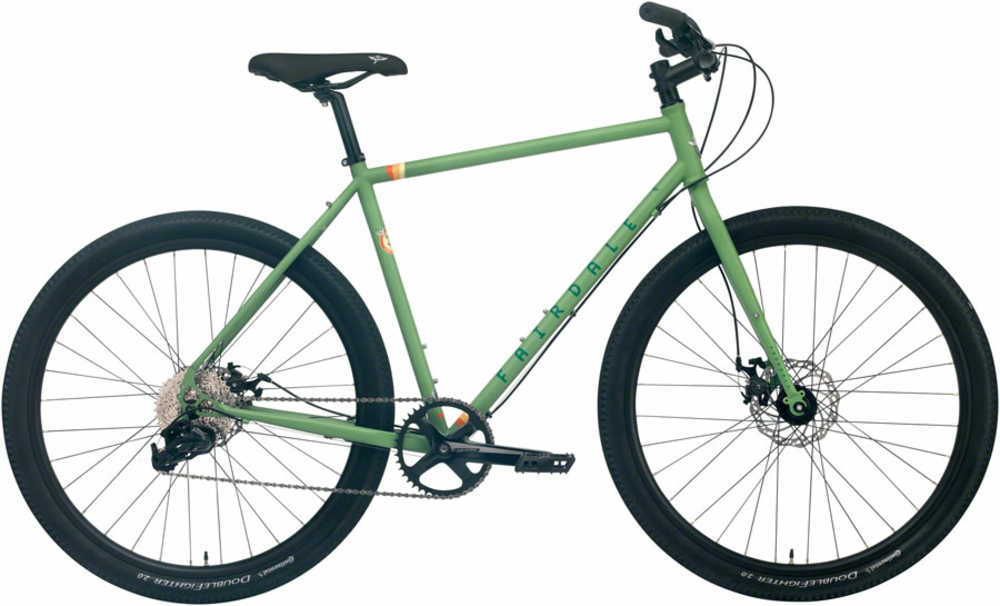

Fairdale Weekender Archer City Bike
  • Color: Matte Sage Green
  • Color: Gloss Black
$1,119.00
Size:
Medium
Wheel Size:
27.5-inch
Please select options
Sorry, this item is currently not available. For further assistance call (828) 274-2453 or chat with us via the icon at the bottom right of this page.

Details

Built around our comfortable, tour-tested, and durable Chromoly steel Weekender frame, the Archer, is a bike with the potential to open up the cycling world for you. It is combined with nine easy-to-use gears, road-smoothing high-volume tires, the all-weather stopping power of disc brakes, and a commanding riding position thanks to Archer handlebars. The Weekender has geometry to work with 27.5 x 2.0” tires, and also leaves plenty of space for compatibility with 700c wheels if you ever feel like changing it up.

- 100% chromoly frame and fork with rack, fender, and two sets of water bottle mounts
- Sizing: X-Small: 4'11 - 5'4" height / Small: 5'2" 5'7" height / Medium: 5'7" - 5'10" height / Large: 5'9" - 6'1" height / X-Large: 6'1"+ height
- Bottom bracket: English 68
- Approximate Max Tire Width 27.5"/650b: 47mm

Geometry Chart:
SizeX-Small (50cm)Small (52cm)Medium (55cm)Large (58cm)X-Large (58cm)
Top Tube (Effective)523mm 523mm545mm579mm602cm
Top Tube (Actual)487mm 505mm532mm559mm585mm
Seat Tube (BB Center To TT Top)401mm 454mm485mm533mm576mm
Seat Tube(BB Center To TT Center)360mm 414mm445mm493mm536mm
Seat Tube Angle74.5° 74°73°73°73°
Head Tube Length115mm 120mm122mm146mm167mm
Head Tube Angle70° 70°71°71.5°71.5°
Chain Stay Length415mm 415mm440mm440mm440mm
Wheelbase992mm 1005mm1037mm1058mm1081mm
Standover717mm 745mm765mm800mm830mm
Stack512mm 517mm565mm589mm609mm
Reach361mm 373mm380mm398mm414mm
Fork Length390mm 390mm416mm416mm416mm
Fork Offset50mm 50mm50mm50mm50mm
BB Drop54mm 54mm72mm72mm72mm
Dropout Spacing135mm 135mm135mm135mm135mm
BB TypeEnglish 68 English 68English 68English 68English 68
Seat Post27.2mm 27.2mm27.2mm27.2mm27.2mm
Seat Clamp30mm 30mm30mm30mm30mm
Approx. Max Tire Width 27.5"/650b47mm 47mm54mm54mm54mm
Approx. Max Tire Width 29"/700cN/A N/A53mm53mm53mm
Wheel Size27.5" 27.5"27.5"27.5"27.5"
Sizes:
Frame SizeRider Height
X-Small4'11" - 5'4"
Small5'2" - 5'7"
Medium5'7" - 5'10"
Large5'9" - 6'1"
X-Large6'1"+

Specs

Frame 100% Chromoly, Disc, w/Rack and Fender mounts (M/L/XL 700c Compatible)
Fork 100% Chromoly. One-piece machined steerer tube
Rims 27.5"/650b, 32-Hole, Aluminum, Double Wall, Pinned Rim, Tubeless compatible
Hubs Front: Sealed Bearings, 32-H, Alum. Shell, Disc Brake Mount, w/Allen Skewer Axle
Rear: Sealed Bearings, 32-H, Alum. Shell, Disc Brake Mount, w/Allen Skewer Axle
Tires Continental Dbl Fighter III, 27.5"/650b x 2.0 (27.5” x 1.65” Maxxis Overdrive on XS/S)
Crankset FSA Vero Pro 1X NW (XS,S =165mm, M=170mm, L,XL=175mm)
Chainrings 42t Narrow-Wide
Shifters SRAM X5 Trigger, 9-Speed
Cassette/Freewheel Sturmey Archer, 11-36T, 9-Speed
Chain KMC X9
Brakes Promax DSK-717
Brake Levers Promax XL-91
Handlebars Fairdale Archer v3, Aluminum
Tape/Grips Fairdale Swan
Stem 70mm, Forged Aluminum (60mm on XS)
Headset FSA, Sealed Integrated, 45º/45º
Seatpost Micro adjust, 27.2mm
Saddle Fairdale Logo Seat
Pedals Odyssey Twisted PC

* Subject to change without notice.

Part Numbers

Option UPC MPN
Gloss Black / Medium / 27.5-inch 630950926978 FDX-302-BK
Matte Sage Green / Medium / 27.5-inch 630950926954 FDX-300-SGRN
