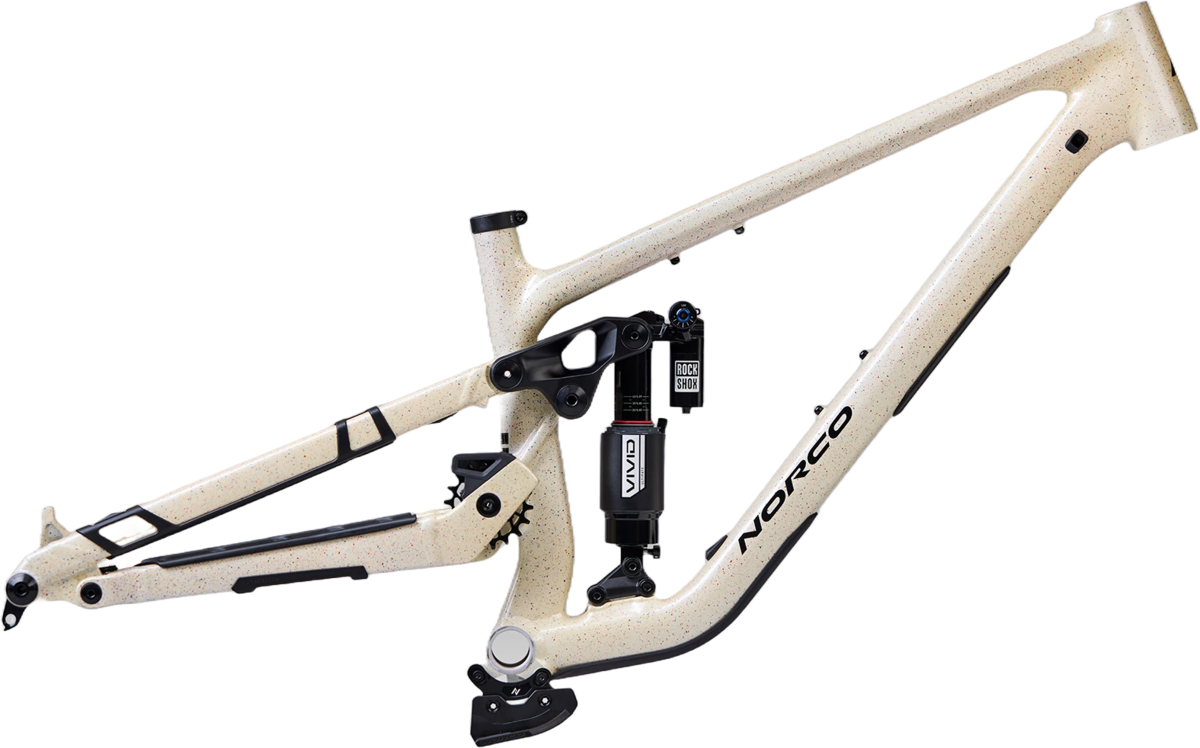

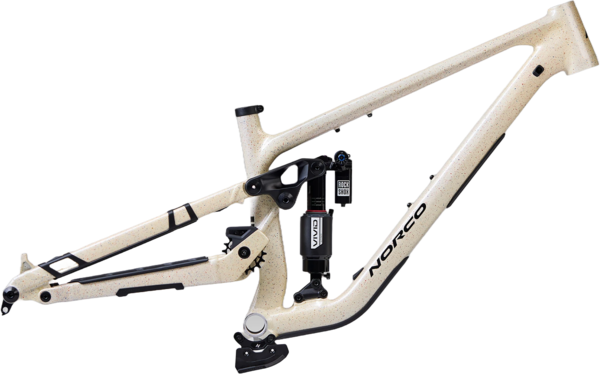

Norco Sight A Frame Kit - 2025
Details
Whether you’re carving down a steep loam line, dropping in for an enduro stage, or heading into the backcountry for an all-day epic, this bike performs. With increased rearward axle path, idler, and the innovative VPSHP suspension layout, this new design gives the Sight next level confidence and capability, up or down the mountain. With 160/150mm of travel, the 2025 Sight takes the best of the Range platform and has tightened it up into a light, pedal friendly, maneuverable, high-pivot package.
Details
- 160mm/150mm of travel with 29" and MX options (Sight 160 models feature 170mm/160mm of travel, MX wheels only).
- 29" and mixed wheelsizes (Sight 160 MX wheels only).
- Available in carbon and aluminum.
- VPSHP suspension platform.
- Norco Design Technology
- Every Sight features 4-piston hydraulic disc brakes and 200/180mm rotors.
- Ride Aligned™ - Perfect fit, dialed handling and personalized setup in minutes.
- No Other Way Limited Lifetime Warranty.
| Frame Size | 1 | 2 | 3 | 4 | 5 |
|---|---|---|---|---|---|
| Wheel Size (in) | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" |
| Travel (mm front/mm rear) | 160/150 | 160/150 | 160/150 | 160/150 | 160/150 |
| Reach (mm) | 422.5 | 447.5 | 472.5 | 497.5 | 522.5 |
| Stack (mm) | 618 | 627 | 636 | 645 | 654 |
| HTA (Head Tube Angle) (degrees) | 64 | 64 | 64 | 64 | 64 |
| OS (Fork Offset) (mm) | 44 | 44 | 44 | 44 | 44 |
| ST (Seat Tube Length) (mm) | 350 | 370 | 385 | 430 | 445 |
| STA (Effective Seat Tube Angle) (degrees) | 77 | 77.25 | 77.5 | 77.75 | 78 |
| RC (Rear Centre Length) (mm) | 420 | 424 | 428 | 432 | 436 |
| BBDF/R (Bottom Bracket Drop) (mm) | 25/4 | 25/4 | 25/4 | 25/4 | 25/4 |
| BBH (Bottom Bracket Height) (mm) | 353 | 353 | 353 | 353 | 353 |
| HTT (Horizontal Top Tube) (mm) | 565 | 589 | 613 | 637 | 661 |
| WB (Wheelbase) (mm) | 1181 | 1214 | 1247 | 1281 | 1314 |
| SOH (Standover) (mm) | 666 | 680 | 689 | 710 | 720 |
| HT (Head Tube Length) (mm) | 105 | 115 | 125 | 135 | 145 |
| Trail (mm) | 135 | 135 | 135 | 135 | 135 |
| Recommended Seatpost Drop (mm) | 150 | 170 | 200 | 230 | 250 |
| Maximum Post Insertion (mm) | 250 | 270 | 300 | 330 | 350 |
| Stem Length (mm) | 40 | 40 | 40 | 40 | 40 |
| Crank Length (mm) | 170 | 170 | 170 | 170 | 170 |
| Tire Size (in) | 2.35" – 2.6" | 2.35" – 2.6" | 2.35" – 2.6" | 2.35" – 2.6" | 2.35" – 2.6" |
| Water Bottle Compatible | 1 x 750 mL | 1 x 750 mL | 1 x 750 mL | 1 x 750 mL | 1 x 750 mL |
| Frame Size | 1 | 2 | 3 | 4 | 5 |
|---|---|---|---|---|---|
| Rider Height (ft/in) | 5'1" - 5'5" | 5'4" - 5'8" | 5'7" - 5'11" | 5'10" - 6'2" | 6'1" - 6'5" |
| Rider Height (cm) | 155 - 165 | 162.5 - 172.5 | 170 - 180 | 177.5 - 187.5 | 185 - 195 |
Specs
| Frame | Aluminum Frame, High Pivot Horst Suspension, 150mm Travel, UDH, Hangerless Interface Compatible, Ride Aligned™ |
|---|---|
| Rear Shock | RockShox Vivid 2 Ultimate Air, 205x60 TR |
| Accessories & Extras | Norco Idler Guide and Lower Guide |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Confetti Cake / SZ1 / 29-inch | 058817709401 | 621415104 | SIG254619901 |
| Confetti Cake / SZ3 / 29-inch | 058817709418 | 621415106 | |
| Confetti Cake / SZ4 / 29-inch | 058817709432 | 621415107 | SIG253117824 |
| Confetti Cake / SZ5 / 29-inch | 058817709449 | 621415108 | SIG259936715 |
