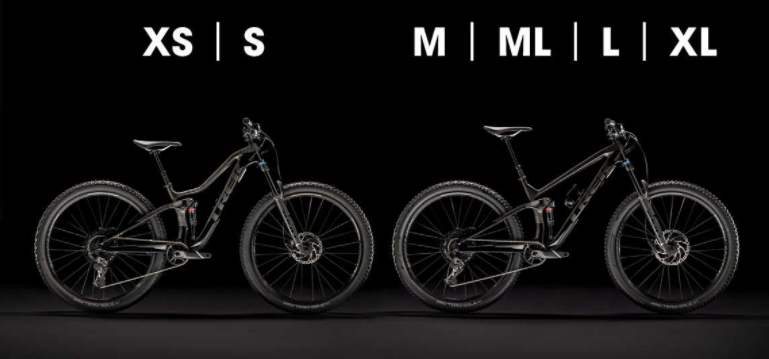

Smaller frames (XS and S) have a top tube that dips down as it approaches the seat tube. This design makes for a lower standover height, which is good for shorter riders because it allows them to straddle their bike more easily. Larger frames (M and up) have a straight top tube because taller riders with longer legs typically don’t have the same issues with standover height.
Fuel EX 9.7 is our most affordable full suspension carbon trail bike. It pairs a lightweight, smooth-riding frame with a beefy 140mm FOX 36 fork, SRAM NX Eagle drivetrain, and powerful 4-piston brakes for a fast, fun mountain bike that's a ripper now, and ripe for upgrades later.
It's right for you if...
You want one carbon trail bike that can take on every adventure, from flowy singletrack to the gnarliest descents and most brutal climbs. You don't mind sacrificing a little on the parts so you can get the best frame right now.
The tech you get
A lightweight and stiff full OCLV Mountain Carbon frame with internal storage, a 140mm FOX Rhythm 36 fork, 130mm of rear travel with a FOX Float Performance rear shock with Trek's efficient RE:aktiv damper, a wide-range 1x12 SRAM NX/GX Eagle drivetrain, a Bontrager Line dropper post, and powerful Shimano 4-piston hydraulic disc brakes.
The final word
Full suspension control on a lightweight and trail-tough carbon frame makes for a fun and fast ride. It's rugged enough for rowdy descents, but still spry for lively climbing and accelerating.
Why you'll love it
- Don't confuse Fuel EX 9.7 with other value carbon models on the market—this bike provides an outstanding frame and suspension, with a workhorse drivetrain and wheels
- A sleek internal storage compartment gives you a handy spot to stow flat fixing supplies or gear
- Bigger, stiffer 36mm fork stanchions won't flex, so you can push harder with more precise, confident steering that helps you stay on your line
- RE:aktiv is smarter, more efficient suspension. It gives you firm pedaling support that instantly gives way over bumps
- We expanded our size range to ensure a better fit for all riders. And, you get the fastest wheel that fits your frame: XS frames get 27.5" wheels, S frames get to choose between 27.5" or 29", and sizes M to XL get 29" wheels
- Sizes X-Small – Small: 27.5-inch
- Sizes Small – X-Large: 29-inch
Due to supply-chain issues, Specs are subject to change without notice.
|Frame||OCLV Mountain Carbon main frame & stays, internal storage, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armor, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130mm travel|
|Fork||Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 140mm travel|
|Headset||Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom|
27.5-inch: Fox Performance Float EVOL, RE:aktiv 3-position damper, tuned by Trek Suspension Lab, 210x52.5mm
29-inch: Fox Performance Float EVOL, RE:aktiv 3-position damper, tuned by Trek Suspension Lab, 210x55mm
Front: 110 x 15mm thru-axle
Rear: 148 x 12mm thru-axle
|Rims/Wheels||Bontrager Line Comp 30, Tubeless Ready, 6-bolt|
|Tires||Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 2.6/2.4"|
|Crankset||SRAM X1 Eagle, DUB, 30T steel ring, Boost (52mm chainline)|
|Bottom Bracket||SRAM DUB, 92mm, PressFit|
|Chain||SRAM NX Eagle, 12 speed|
|Rear Derailleur||SRAM GX Eagle|
|Cassette/Rear Cogs||SRAM PG-1230 Eagle, 11-50, 12 speed|
|Shifters||SRAM NX Eagle, 12 speed|
|Handlebars||Bontrager Line, alloy, 35mm, 27.5mm rise, 780mm width|
|Stem||Bontrager Line, 35mm, Knock Block, 0 degree|
|Brakes||SRAM G2 R 4-piston hydraulic disc w/SRAM CenterLine, 6-bolt, round-edge rotors|
|Saddle||Bontrager Arvada, hollow chromoly rails, 138mm width|
|Seat Post||Bontrager Line Dropper, 100mm travel, internal routing, 31.6mm|
|Accessories & Extras||Bontrager BITS Internal Frame Storage Bag|
* Subject to change without notice.
|Matte Raw Carbon/Gloss Trek Black / X-Small / 27.5-inch||601842369845||1044484||FUE45779796K|
|Matte Raw Carbon/Gloss Trek Black / Small / 27.5-inch||601842369838||1044485||FUE44783879K|
|Matte Raw Carbon/Gloss Trek Black / Small / 29-inch||601842369821||1044486||FUE43875563K|
|Matte Raw Carbon/Gloss Trek Black / Medium / 29-inch||601842369814||1044487||FUE43303640K|
|Matte Raw Carbon/Gloss Trek Black / Medium/Large / 29-inch||601842369807||1044488||FUE4477129K|
|Matte Raw Carbon/Gloss Trek Black / Large / 29-inch||601842369791||1044489||FUE43768354K|
|Matte Raw Carbon/Gloss Trek Black / X-Large / 29-inch||601842369784||1044490||FUE44754942K|
|Lithium Grey/Factory Orange / X-Small / 27.5-inch||601842369913||1043266||FUE41582703E|
|Lithium Grey/Factory Orange / Small / 27.5-inch||601842369906||1043267||FUE40337575E|
|Lithium Grey/Factory Orange / Small / 29-inch||601842369890||1043268||FUE3944411E|
|Lithium Grey/Factory Orange / Medium / 29-inch||601842369883||1043269||FUE39647679E|
|Lithium Grey/Factory Orange / Medium/Large / 29-inch||601842369876||1043270||FUE40691137E|
|Lithium Grey/Factory Orange / Large / 29-inch||601842369869||1043271||FUE39828570E|
|Lithium Grey/Factory Orange / X-Large / 29-inch||601842369852||1043272||FUE40479759E|
