Trek Top Fuel 9.9 XTR - 2024

Trek Top Fuel 9.9 XTR
  • Color: Carbon Red Smoke
  • Color: Matte Emerald Iris
  • Color: Pennyflake
  • Color: Matte Raw Carbon
$9,549.99

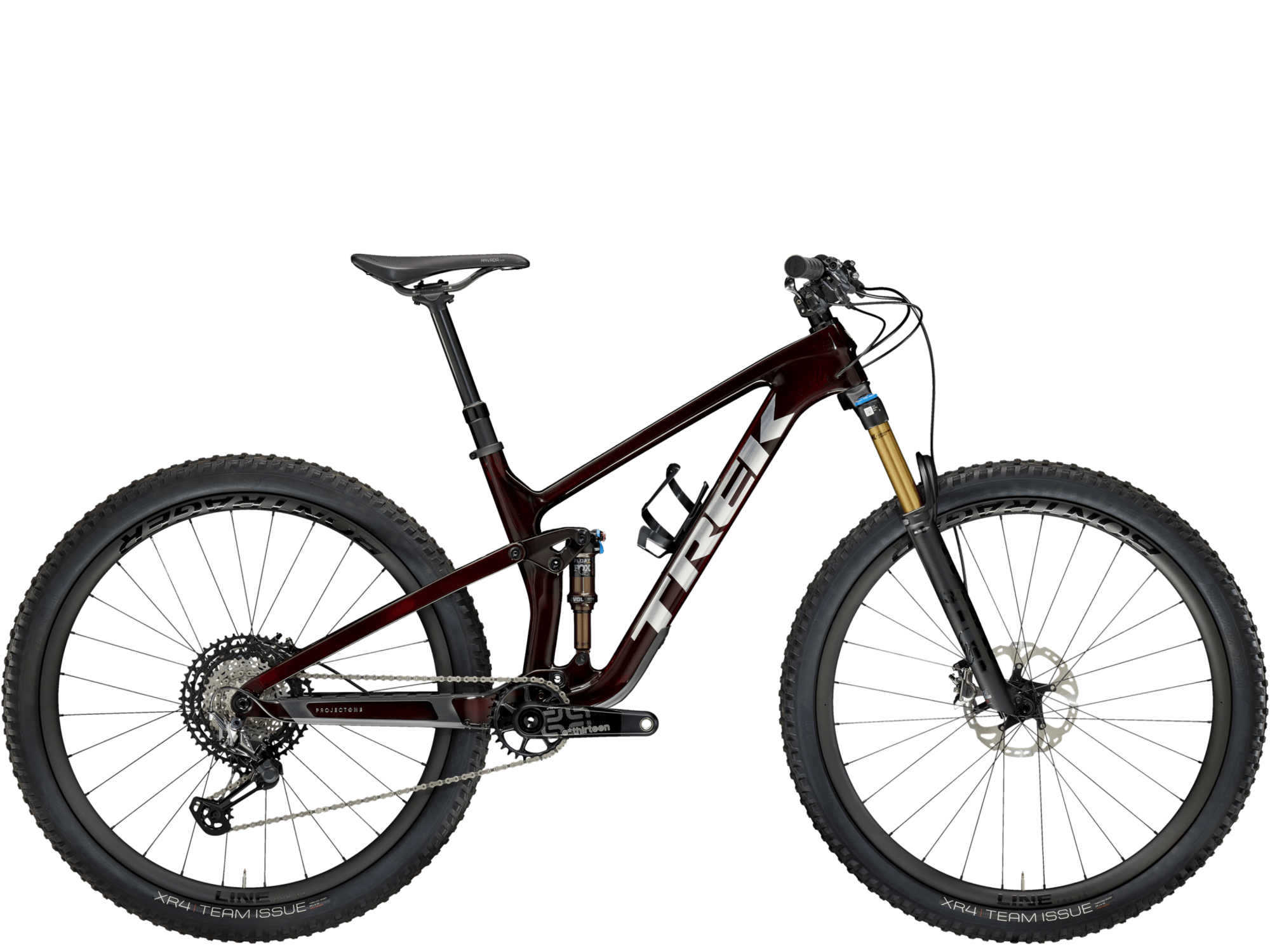

Color: Carbon Red Smoke
Size: Select size
Please select options Unavailable
Sorry, this item is currently not available. For further assistance call (828) 274-2453 or chat with us via the icon at the bottom right of this page.

Details

Top Fuel 9.9 XTR is a top-shelf full-suspension mountain bike for riders who are serious about their fun. Its lightweight carbon frame is spec'd to the hilt with high-end suspension and high-performance parts. And all those fancy bits and bobs are really, really good at hitting the party line.

WHY YOU'LL LOVE IT

- The OCLV Carbon RSL integrated bar/stem is ultralight, ultra-comfortable, and it looks awesome
- Wider Line Pro 30 wheels provide better tire support so you can run lower pressure and get more traction
- This bike’s killer suspension setup is both efficient and ready to party
- A sleek internal storage compartment gives you a versatile spot to stow tools and gear

IT'S RIGHT FOR YOU IF…

You're looking for the fastest way to a good time on the trail, and you're willing to crack open the piggy bank for top-shelf suspension and lots of lightweight carbon.

THE TECH YOU GET

A light and stiff full carbon frame, 120mm Fox Factory 34 fork, 120mm of rear travel with a Fox Factory Float shock, and a smooth and precise Shimano XTR 1x12 drivetrain. Plus, wide carbon Bontrager Kovee Pro 30 wheels with a 108-tooth Rapid Drive hub for instant engagement, and lots of carbon everywhere.

THE FINAL WORD

With Top Fuel 9.9, you get a smooth, fast ride that doesn't shy away from rowdy trails. An OCLV Mountain Carbon frame, top-of-the-line suspension, and carbon components join forces for a nimble and insanely fun ride.

Geometry

Sizes:
Frame size letterSmallMediumMedium / LargeLargeX-Large
Geometry position High / Low High / Low High / Low High / Low High
Wheel size 29" 29" 29" 29" 29"
A - Seat tube (cm) 39.5 42 43.5 45 50
B - Seat tube angle 70.4° / 70° 70.4° / 70° 70.4° / 70° 70.4° / 70° 70.4° / 70°
Effective seat tube angle 76.4° / 76° 76.4° / 76° 76.4° / 76° 76.4° / 76° 76.4° / 76°
C - Head tube length (cm) 10 10 10.5 11 12.5
D - Head angle 66.4° / 66° 66.4° / 66° 66.4° / 66° 66.4° / 66° 66.4° / 66°
E - Effective top tube (cm) 56.7 / 56.8 59.7 / 59.8 61.5 / 61.6 63.1 / 63.2 65.4 / 65.5
F - Bottom bracket height (cm) 34.3 / 33.8 34.3 / 33.8 34.3 / 33.8 34.3 / 33.8 34.3 / 33.8
G - Bottom bracket drop (cm) 3.1 / 3.6 3.1 / 3.6 3.1 / 3.6 3.1 / 3.6 3.1 / 3.6
H - Chainstay length (cm) 43.4 / 43.5 43.4 / 43.5 43.4 / 43.5 43.4 / 43.5 43.4 / 43.5
I - Offset (cm) 4.4 4.4 4.4 4.4 4.4
J - Trail (cm) 11.5 / 11.8 11.5 / 11.8 11.5 / 11.8 11.5 / 11.8 11.5 / 11.8
K - Wheelbase (cm) 115.0 / 115.1 118 / 118.1 119.7 / 119.8 121.4 / 121.5 124 / 124.1
L - Standover (cm) 71.9 / 71.5 74 / 73.5 74.5 / 74 75 / 74.5 76 / 75.5
M - Frame reach (cm) 42.4 / 42 45.4 / 45 46.9 / 46.5 48.4 / 48 50.4 / 50
N - Frame stack (cm) 59.2 / 59.5 59.2 / 59.5 59.7 / 60.1 60.1 / 60.5 61.5 / 61.8
Sizes:
SizeRider Height (cm)Rider Height (in)Inseam (cm)Inseam (in)
Small 155 - 165 5'1" - 5'5" 74 - 78 29 - 31
Medium 165 - 176 5'5" - 5'9" 79 - 83 31 - 33
Medium / Large 173 - 180 5'8" - 5'11" 81 - 86 32 - 34
Large 177 - 188 5'10" - 6'2" 84 - 89 33 - 35
X-Large 188 - 195 6'2" - 6'5" 89 - 91 35 - 36

Specs

Frame OCLV Mountain Carbon, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120mm travel
Fork Fox Factory 34, Float EVOL air spring, GRIP2 damper, tapered steerer, 44mm offset, Kashima Coat, Boost110, 15mm Kabolt axle, 130mm travel
Rear Shock Fox Factory Float DPS, 3-position damper, open-mode adjustment, Kashima Coat, 185mm x 50mm
Wheels Front: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29''
Rear: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12mm thru axle, 29''
Tires Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120tpi, 29x2.40''
Bottom Bracket E*thirteen BB20-P, BSA threaded, 73mm width
Crankset E*thirteen TRS Race Carbon, 30T, 55mm chainline, 170mm length
Shifters Shimano XTR M9100, 12 speed
Rear Derailleur Shimano XTR M9100, Shadow Plus, long cage, 51T max cog
Cassette/Freewheel Shimano XTR M9101, 10-51, 12 speed
Chain Shimano Dura-Ace/XTR M9100, 12 speed
Brakes Shimano XTR M9100 hydraulic disc
Rotors Shimano RT86, 6-bolt, 180mm
Shimano RT86, 6-bolt, 160mm
Handlebars Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5mm handlebar rise, 820mm width, 0 degree stem rise
Tape/Grips Bontrager XR Trail Elite, nylon lock-on
Headset Knock Block 2.0 Integrated, 72-degree radius (includes infinite-radius chip), sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom
Seatpost Bontrager Line Elite Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm
Saddle Bontrager Arvada Pro, carbon rails, 138mm width
Pedals Sold Separately

* Subject to change without notice.

Videos

Trek Top Fuel

Part Numbers

Option UPC MPN Store SKU
Carbon Red Smoke / Small 601842933305 5316162 TOP27513787E
Carbon Red Smoke / Medium/Large 601842933282 5316164 TOP28808799E
Carbon Red Smoke / Large 601842933275 5316165 TOP27259866E
Carbon Red Smoke / X-Large 601842933268 5316166 TOP28857519E
Matte Emerald Iris / Small 601842888209 5305579 TOP29659292S
Matte Emerald Iris / Medium/Large 601842888186 5305581 TOP30505796S
Matte Emerald Iris / Large 601842888179 5305582 TOP29803912S
Matte Emerald Iris / X-Large 601842888162 5305583 TOP30820812S
Pennyflake / Small 601842916766 5315765 TOP23922122E
Pennyflake / Medium/Large 601842916742 5315767 TOP2435873E
Pennyflake / Large 601842916735 5315768 TOP23790476E
Pennyflake / X-Large 601842916728 5315769 TOP24122257E
Matte Raw Carbon / Small 601842916810 5315760 TOP27171964N
Matte Raw Carbon / Medium 601842916803 5315761 TOP27493761N
Matte Raw Carbon / Medium/Large 601842916797 5315762 TOP28752698N
Matte Raw Carbon / Large 601842916780 5315763 TOP27875632N
Matte Raw Carbon / X-Large 601842916773 5315764 TOP28306619N
